Variography

import geolime as geo

dh_tom = geo.read_file("../data/dh_tom_comp.geo")

Once the capping value determined, we can create a new property to capp the value above 25.

dh_tom.set_property(name='Zn_cap', data='Zn_pct')
dh_tom.update_property(name='Zn_cap', data='25', region="(Zn_cap > 25)")

Normal Score

For simplicity in variography analysis, let’s compute the normal scores of the data.

gauss_score function returns a numpy array, so let’s create a new property on the Drillholes.

geo.gauss_score(dh_tom['Zn_cap'])

2025-10-03 14:58:42,263 [WARNING] GeoLime Project - |GEOLIME|.anamorphosis.py : There are NaN in data. They will be ignored.

array([-0.78162595,         nan,         nan, ..., -0.73537037,
       -0.97667753, -1.06409047])

dh_tom.set_property(name="Zn_gauss", data=geo.gauss_score(dh_tom['Zn_cap']))

2025-10-03 14:58:42,308 [WARNING] GeoLime Project - |GEOLIME|.anamorphosis.py : There are NaN in data. They will be ignored.

Experimental Analysis

Lag Creation

For Variography analysis, lag creation can be perfom

• implicitly with a number of lags and a length of lag

• explicitly with interval values provided.

lags, tol = geo.generate_lags_from_interval([[0, 10], [10, 20], [20, 40]])

lags, tol = geo.generate_lags(lag=40, plag=50, nlags=15)

lags

array([  0.,  40.,  80., 120., 160., 200., 240., 280., 320., 360., 400.,
       440., 480., 520., 560.])

tol

20.0

Variography Analysis is perform in 2 step:

• finding the main direction

• computing the semi variogram 1D in the major/semi-major/minor directions

The finding of the main direction is perform through the analysis of variomap is the different planes.

• Analysis around the Z axis for the azimuth using vario_map / vario_contour;

• Once found the main azimuth, analysis around the X axis for the dip using vario_contour_dip;

• Once found the correspond azimuth and dip, analysis around the Z axis for the pitch using vario_contour_pitch

Finding main direction

geo.vario_map(
    geo_object=dh_tom,
    attribute="Zn_gauss",
    region="Zn_gauss.notna()",
    lags=lags,
    tol=tol,
    n_az=15,
    atol=15,
    backend=geo.GeostatsBackend.RUST,
    rust_multithread=True
)

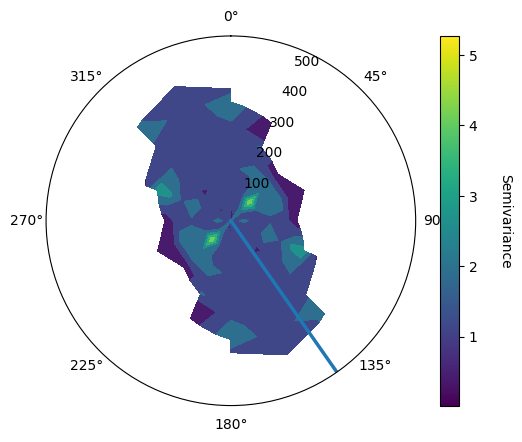

geo.vario_contour(
    geo_object=dh_tom,
    attribute="Zn_gauss",
    region="Zn_gauss.notna()",
    lags=lags,
    tol=tol,
    n_az=15,
    atol=10,
    user_azimuth=145,
    backend=geo.GeostatsBackend.RUST,
    rust_multithread=True
)

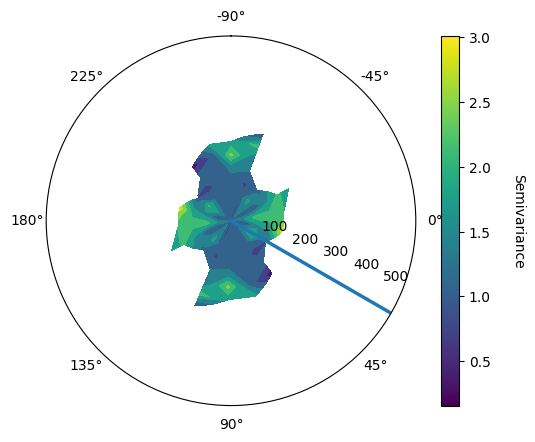

geo.vario_contour_dip(
    geo_object=dh_tom,
    attribute="Zn_gauss",
    region="Zn_gauss.notna()",
    lags=lags,
    tol=tol,
    azimuth=145,
    n_dip=18,
    atol=10,
    user_dip=30,
    c_step=None,
    save_file=None,
    backend=geo.GeostatsBackend.RUST,
    rust_multithread=True
)

lags, tol = geo.generate_lags(lag=5, plag=50, nlags=15)

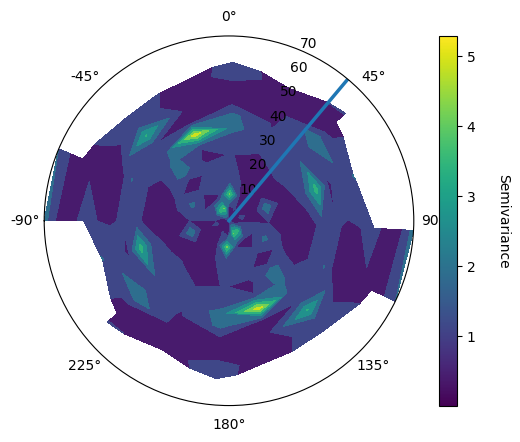

geo.vario_contour_pitch(
    geo_object=dh_tom,
    attribute="Zn_gauss",
    region="Zn_gauss.notna()",
    lags=lags,
    tol=tol,
    azimuth=145,
    dip=30,
    n_pitch=15,
    atol=10,
    user_pitch=40,
    c_step=None,
    save_file=None,
    backend=geo.GeostatsBackend.RUST,
    rust_multithread=True
)

Computing Major/Semi-major/minor 1D variograms

lags, tol = geo.generate_lags(lag=40, plag=50, nlags=15)

vario_exp_major = geo.variogram(
    object=dh_tom,
    attribute="Zn_gauss",
    region="Zn_gauss.notna()",
    geographic_azimuth=145,
    dip=30,
    pitch=40,
    lags=lags,
    tol=tol,
    atol=15
)

vario_exp_major

	lag	npairs	avgdist	vario
0	0.0	77.0	7.075251	0.465396
1	40.0	3398.0	40.792308	0.777796
2	80.0	40960.0	78.978514	0.806629
3	120.0	30230.0	124.930330	0.990211
4	160.0	40894.0	156.149538	1.115701
5	200.0	36094.0	203.015277	1.081183
6	240.0	25161.0	236.455210	1.035988
7	280.0	33921.0	281.398117	0.942194
8	320.0	37335.0	321.020570	1.038284
9	360.0	25134.0	358.368372	0.778095
10	400.0	26563.0	400.087531	0.820317
11	440.0	23755.0	437.475481	0.803660
12	480.0	16474.0	482.005500	0.954571
13	520.0	15733.0	520.853958	0.870347
14	560.0	15398.0	559.318854	0.754568

geo.plot_semivariogram(
    variograms=[vario_exp_major],
    display_npairs=True
)

vario_exp_semi_major = geo.variogram(
    object=dh_tom,
    attribute="Zn_gauss",
    region="Zn_gauss.notna()",
    geographic_azimuth=145,
    dip=30,
    pitch=-50,
    lags=lags,
    tol=tol,
    atol=15
)

geo.plot_semivariogram(
    variograms=[vario_exp_semi_major],
    display_npairs=True
)

lags, tol = geo.generate_lags(lag=2, plag=50, nlags=15)

vario_exp_minor = geo.variogram(
    object=dh_tom,
    attribute="Zn_gauss",
    region="Zn_gauss.notna()",
    geographic_azimuth=145,
    dip=-60,
    pitch=40,
    lags=lags,
    tol=tol,
    atol=30
)

geo.plot_semivariogram(
    variograms=[vario_exp_minor],
    display_npairs=True
)

Computing Downhole Variogram

lags, tol = geo.generate_lags(lag=1., plag=50, nlags=20)

vario_exp_bh = geo.variogram_downhole(
    object= dh_tom,
    attribute="Zn_gauss",
    region="Zn_gauss.notna()",
    lags=lags,
    tol=tol,
)

geo.plot_semivariogram(
    variograms=[vario_exp_bh],
    display_npairs=True
)

Automatic Fitting

Automatic Fitting uses an empty model to fit along experimental variograms. Fitting is usually performed in 2 steps : first fit the nugget and then fit the other structures.

Fitting the Nugget

nugget_model = geo.Nugget() + geo.Spherical()

The fitting algorithm can be set up to preferrentially fit the small ranges using the INVERSE_DISTANCE or SQUARED_INVERSE_DISTANCE.

geo.model_fit(
    variograms=[vario_exp_bh],
    cov=nugget_model,
    weighting_method=geo.VarioFitWeightingMethod.SQUARED_INVERSE_DISTANCE
)

print(nugget_model)

Model with 2 components

Component 1 :
Sill : 0.027923352540629543
Covariance type : Nugget

Component 2 :
Sill : 0.6726645994942252
Covariance type : Spherical
Scales : (18.850990791545037, 4.749976203702906, 6.537409819166593)
Angles : (51.99053468369605, 1e-10, 0.0)

Total sill = 0.7005879520348547

Model and experimental variogram can be plotted on the same graphic by specifying the parameter model and model_angles. Note that for downhole varigram the model_angles values do not have any importance.

geo.plot_semivariogram(
    variograms=[vario_exp_bh],
    model=nugget_model,
    model_angles=[{"azi":0, "dip":90, "pitch":90}],
    display_npairs=True
)

Each structure component can be accessed using the cov_elem_list attribute.

nugget_model.cov_elem_list[0].sill

0.027923352540629543

Fitting the structures

model =  geo.Nugget() + geo.Spherical() + geo.Spherical()

short_range_spherical_ratio = 0.6
long_range_spherical_ratio = 0.4

geo.model_fit(
    variograms=[
        vario_exp_major,
        vario_exp_semi_major,
        vario_exp_minor
    ],
    cov=model,
    constraints=[
        {"sill_fixed":0.13},
        {
            "sill_max": short_range_spherical_ratio * (vario_exp_major.attrs["variable_var"] - 0.13),
            "angle_fixed_0": 145,
            "angle_fixed_1": 60,
            "angle_fixed_2": 40,
            "scale_max_0":100,
            "scale_max_1":100,
            "scale_max_2":20
        },
        {
            "sill_max": long_range_spherical_ratio * (vario_exp_major.attrs["variable_var"] - 0.13),
            "angle_fixed_0": 145,
            "angle_fixed_1": 60,
            "angle_fixed_2": 40,
        }
    ]
)

geo.plot_semivariogram(
    variograms=[vario_exp_major, vario_exp_semi_major, vario_exp_minor],
    model=model,
    model_angles=[
        {"azi":145, "dip":60, "pitch":40},
        {"azi":145, "dip":60, "pitch":-50},
        {"azi":145, "dip":-30, "pitch":40},
    ],
    display_npairs=True
)

print(model)

Model with 3 components

Component 1 :
Sill : 0.13
Covariance type : Nugget

Component 2 :
Sill : 0.5420557387062593
Covariance type : Spherical
Scales : (3.930152875018527, 85.67720634812147, 9.756860574267415)
Angles : (145.0, 60.0, 40.0)

Component 3 :
Sill : 0.36137049659907544
Covariance type : Spherical
Scales : (559.5578867211551, 13.99159101413549, 559.4462269151187)
Angles : (145.0, 60.0, 40.0)

Total sill = 1.0334262353053347

dh_tom.to_file("../data/dh_tom_comp_capped.geo")
